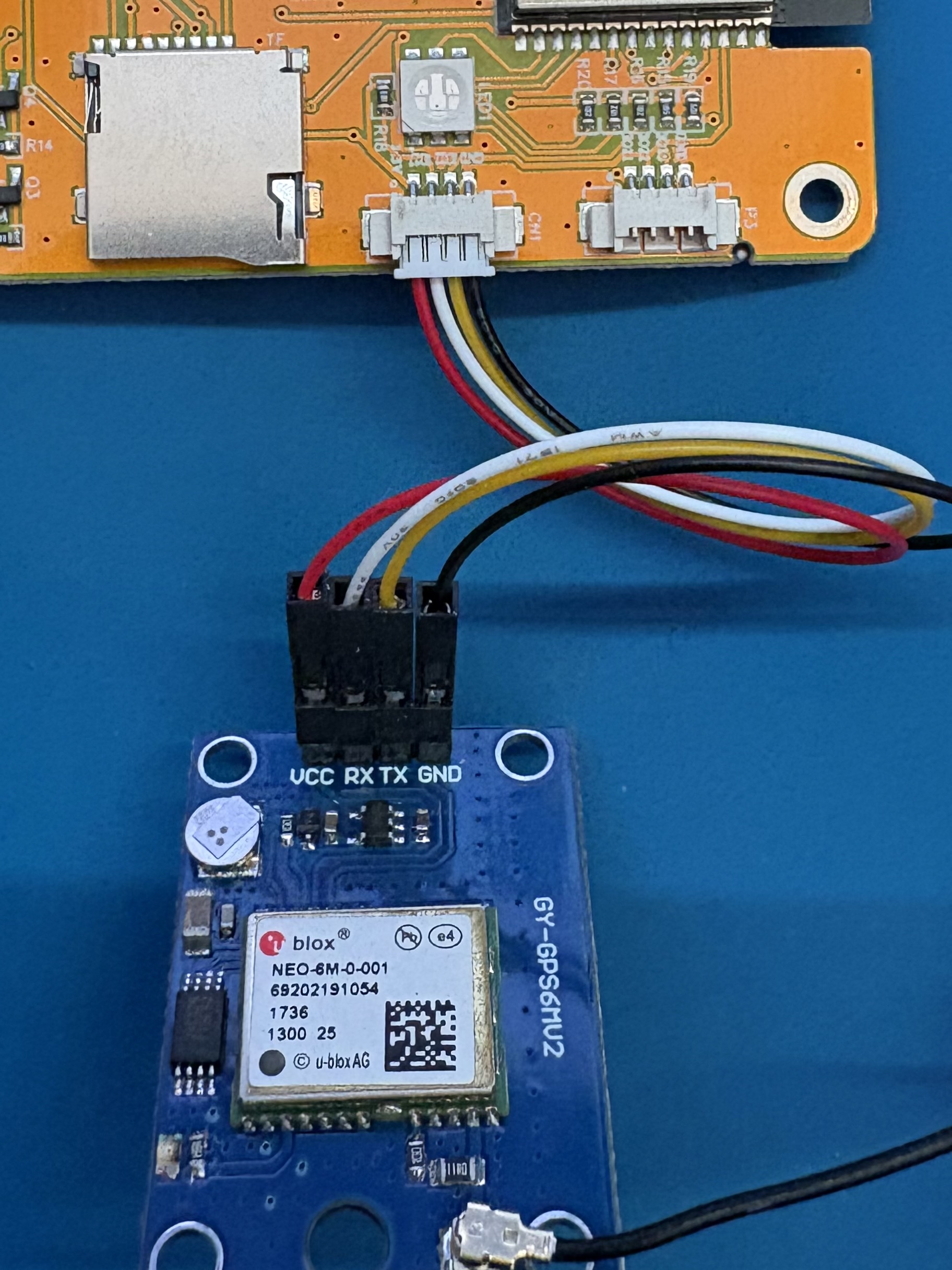

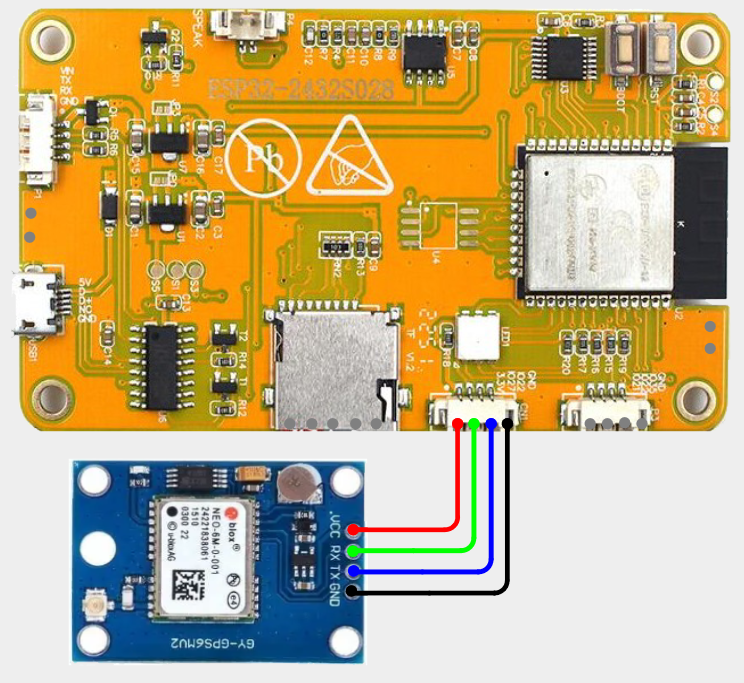

CYD - GPS# Configuration# More information GPS modules can be found here. Default Pins: RX=22 TX=27 Items Needed# GPS Module Pins# GPS CYD VCC/5V - 1 5V RX - 2 IO27 TX - 3 IO22 GND - 4 GND Wiring Diagram# View on Cirkit Designer
