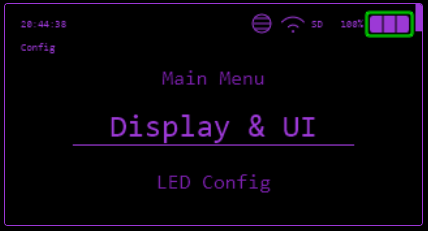

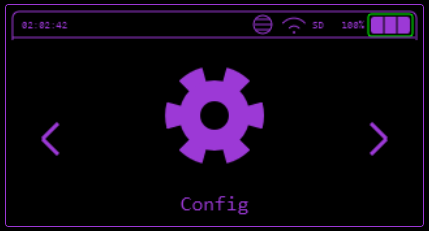

Config#

The config menu contains many settings, some relating to the device and some relating to features.

Brightness - Adjust screen brightness
- 100%
- 75%
- 50%
- 25%
- 1%
Dim Time - Set time before screen dims
- 10 seconds
- 20 seconds
- 30 seconds
- 60 seconds
- Disabled
Orientation - Set screen orientation
- Default
- Landscape (180°)
- Portrait (+90°)
- Portrait (-90°)
UI Color - Choose UI color
- Range of build in colour schemes
- Custom color - Choose custom RGB565 values for:
  - Primary
  - Secondary
  - Background
- Invert color
UI Theme - Choose theme
- SD Card - Load from SD Card
- LittleFS - Load from LittleFS
- Default - Restore default theme

LED Color - Choose LED color
- Range of build in colours
- Custom color - Choose custom RGB colour
LED Effect - Choose LED effect
- Solid Color - Constant on
- Breathe - Smooth fade in and out
- Color Cycle - Cycle through colors
- Color Wheel - Rotate through color wheel
- Chase - One LED chases around
- Chase Tail - One LED with fading tail chases around
- Config - Speed - Adjust speed of effect
  - 1 (slow) to 10 (fast)
  - Sync To Encoder - Movement of the encoder will animate the effect
- Config - Direction - Set direction of effect
  - Clockwise
  - Anti-Clockwise
LED Brightness - Adjust LED brightness
- Off
- 10%
- 25%
- 50%
- 75%
- 100%
LED Blink On/Off - Toggle LED blinking for some notifications

InstaBoot On/Off - Toggles instant bootup, skipping the splash screen and start up sound
WiFi Startup On/Off - Toggles automatic WiFi connection on startup to a known network if credentials are saved
Startup App - Choose an app to launch on startup from:
- None
- Brucegotchi
- Clock
- Custom SubGHz
- GPS Tracker
- JS Interpreter
- Mass Storage
- PN532 BLE
- PN532 UART
- Sniffer
- Wardriving
- WebUI
Hide/Show Apps - Choose which apps to show in the main menu
Clock - Set system clock
- Via NTP Set Timezone - Select timezone for NTP time sync which happens when connected to WiFi
- Set Time Manually - Set date and time manually
- Daylight Savings On/Off - Toggle daylight savings time
- 12/24 Hour Format - Choose between 12 hour (AM/PM) or 24 hour time format
Advanced - Opens advanced configuration options:
- Toggle BLE API - Toggle on BLE API
- Network creds - Configure AP Mode SSID and Password
  - WiFi AP Creds
    - SSID
    - Password
- BadUSB/BLE - Configure BadUSB/BLE settings
  - Keyboard Layout - Select keyboard layout
  - Key Delay - Set delay between keystrokes (in ms)
  - Show Output - Toggle showing output withint the BadUSB/BLE app
- Factory Reset - Reset device to factory settings (all configuration data will be reset).

This menu contains power-related options:

If the App Store is not installed, this option will allow you to install it, you must be connected to WiFi for this to work.

Once intalled you can find the App Store by going to JS Interpreter -> Tools.

This is a special menu for developers and advanced users. It contains options to configure hardware interfaces and switch serial modes.

Info

To activate Dev Mode scroll through the main menu 5 times.

Displays information about the device, including:
